Advantages of Bronze Material in CNC Machining

Bronze, as a metal material that combines excellent mechanical properties with machinability, is widely used in the manufacturing of various precision parts due to its outstanding cutting performance, good corrosion resistance, and stable dimensional accuracy.

Copper-based materials, including bronze, offer significant advantages when used to produce components. Good corrosion resistance is one of the most prioritized properties among materials, while excellent cutting performance and high precision are essential requirements for precision parts.

This article will cover a wide range of knowledge about CNC machining of bronze, including the advantages of bronze material in CNC machining, tool selection for CNC machining bronze parts, bronze machining processes, technical key points of CNC machining bronze parts, and common issues and solutions in CNC machining bronze. Through this article, you will gain a new understanding of CNC machining bronze.

1. Excellent Machinability

Bronze is one of the most easily machined metals, primarily due to its composition. It exhibits good ductility, high feed rates, and low machining resistance, making it ideal for CNC machining. This characteristic also makes bronze one of the most widely used metal materials in CNC machining.

2. Superior Corrosion Resistance

Bronze has good corrosion resistance, which is another important advantage making it suitable for various machining projects. Excellent corrosion resistance not only extends the service life of bronze tools or parts but also makes it suitable for applications in humid or liquid environments. However, the corrosion resistance of bronze may vary depending on the content of alloying elements.

3. Good Ductility

Due to its high copper content, bronze exhibits excellent ductility. This property makes bronze highly formable during machining, facilitating the production of complex geometric shapes. Therefore, bronze is highly suitable for CNC machining customized parts.

4. Moderate Strength and Hardness

Although bronze is very easy to machine, it still possesses good strength and durability. While its strength is not as high as steel, it is fully sufficient for most conventional applications and can meet the load-bearing requirements of parts during use.

5. Excellent Aesthetic Appearance

In many machining projects, the appearance of the finished product is also a critical factor. Bronze has a naturally distinct color and an elegant appearance, making it suitable for direct use without additional surface treatment. This natural visual appeal gives bronze parts both functional and decorative value.

---

Commonly Used Bronze Grades in CNC Machining

Bronze is primarily composed of copper with other elements such as tin, aluminum, or silicon. The ratio of copper to other elements can be flexibly adjusted to impart different properties to the material. Different ratios form different grades of bronze, which are the main materials used for custom parts in CNC machining.

1. Bronze C932

C932, commonly known as bearing bronze, is one of the most widely used bronze grades in CNC machining. It is highly popular due to its excellent machinability and good wear resistance. Its superior cutting performance makes it widely used in the machining of custom bronze parts, such as bushings, bearings, and thrust washers.

Advantages:

• Excellent machinability
• Good wear resistance
• High load-bearing capacity

Disadvantages:

• Less suitable for high-temperature applications
• May require lubrication in certain environments

2. Bronze C954

C954, also known as aluminum bronze, has high strength and excellent corrosion resistance. It is widely used due to its resistance to wear and deformation under load. This material is commonly used in heavy-duty applications such as gears, valves, and marine components.

Advantages:

• High strength
• Excellent corrosion resistance
• Good wear resistance

Disadvantages:

• More challenging to machine compared to leaded bronzes
• Higher cost

3. Bronze C510

C510, often referred to as phosphor bronze, offers good fatigue resistance and spring properties. This material provides good machinability, strength, and ductility, making it commonly used in electrical connectors, springs, and bellows.

Advantages:

• Excellent fatigue resistance
• Good spring properties
• Good corrosion resistance

Disadvantages:

• Higher cost than some other bronzes
• Requires precise machining parameters

---

Surface Treatment Options for CNC Machined Bronze Parts

Bronze does not have a natural protective layer, but its distinct appearance is inherently decorative, making it suitable for direct use without surface treatment in some cases. However, for applications with higher aesthetic requirements, further surface treatment is often necessary. Below are several common surface treatment methods for CNC machined bronze parts:

1. As-Machined Surface

Due to the inherent aesthetic appeal of bronze, some applications directly use the as-machined surface, particularly in scenarios where functionality is prioritized over appearance. However, such surfaces are relatively prone to oxidation and tarnishing over time, and are generally not recommended for applications with high aesthetic or long-term durability requirements.

2. Polishing

Polishing involves treating the part surface with polishing wheels and abrasive discs to remove surface impurities and improve smoothness. This method significantly enhances the part’s appearance, making it smoother and brighter, and is suitable for fine finishing of appearance parts.

3. Electroplating

Electroplating is a process that uses an electrolyte to deposit molecules of other metals (such as nickel or chrome) uniformly onto the bronze surface. Electroplating not only gives the part a brighter or smoother appearance but also improves its corrosion and wear resistance, making it a common high-end decorative surface treatment solution.

4. Honing

Honing involves uniformly applying a磨石 (grinding stone) to the bronze part surface to create a cross-hatched texture pattern. This improves surface finish and enhances the part’s fit and friction control, making it suitable for internal holes or sliding surfaces of precision components.

5. Powder Coating

Powder coating uses electrostatic adsorption to apply dry powder coatings to the bronze part surface, forming a dense protective layer after high-temperature curing. This process significantly enhances the corrosion and wear resistance of bronze parts while also providing various color and texture decorative effects, making it suitable for applications with high aesthetic and protective requirements.

---

Considerations for Selecting Bronze in CNC Machining Projects

Choosing the right bronze material for a CNC machining project is far more complex than it may seem. Due to the variety of bronze grades available, each with different performance characteristics, selecting the most suitable material requires careful consideration of multiple factors. Before finalizing the bronze material, it is advisable to create an evaluation checklist to make a more informed decision. Below are some key considerations:

1. Required Machining Time for the Part

Different projects have varying delivery requirements, which directly influence the choice of bronze grade. For example, C932, a commonly used bronze grade in CNC machining, is known for its excellent machinability, making it one of the most efficient bronze materials for machining. If the project has a tight timeline and requires rapid delivery of custom parts, C932 is the preferred material. However, if the project requires a balance between machining efficiency and other properties, such as corrosion resistance or high strength, other grades like C954 or C510 may be considered.

2. Design for Manufacturability (DFM)

Regardless of the material used, it is essential to follow Design for Manufacturability (DFM) principles before machining. Although most bronze materials are inherently easy to machine, overly complex part designs can still increase machining difficulty, time, and cost. Therefore, it is recommended to minimize machining steps, optimize structures, and avoid frequent fixture changes during the design phase to reduce overall machining costs.

3. Actual Application Scenario of the Part

The compositional differences among bronze grades result in variations in properties such as strength, corrosion resistance, and wear resistance. Therefore, the final part’s application scenario will directly influence the material selection. For example, parts used in marine environments or high-load applications are better suited to C954 aluminum bronze, which offers excellent corrosion resistance and strength, rather than C932, which prioritizes machinability.

---

Applications of Bronze Parts

Due to their excellent mechanical properties, aesthetic appearance, and good machinability, bronze parts are widely used in various industries. Some typical applications of CNC machined bronze parts include:

• Bushings and bearings
• Valve components
• Marine hardware
• Electrical connectors
• Gears and sprockets
• Architectural decorations
• Other components requiring both appearance and performance

---

Tool Selection for CNC Machining Bronze Parts

For those involved in mechanical engineering and industrial design, familiarity with milling tools used to create design features and parts is fundamental and essential. Knowing the types of tools and their specific applications enables designers and engineers to more accurately assess the cost and complexity implications of their design decisions. This section will review commonly used tools in CNC vertical machining centers (VMCs) and briefly explain their applications.

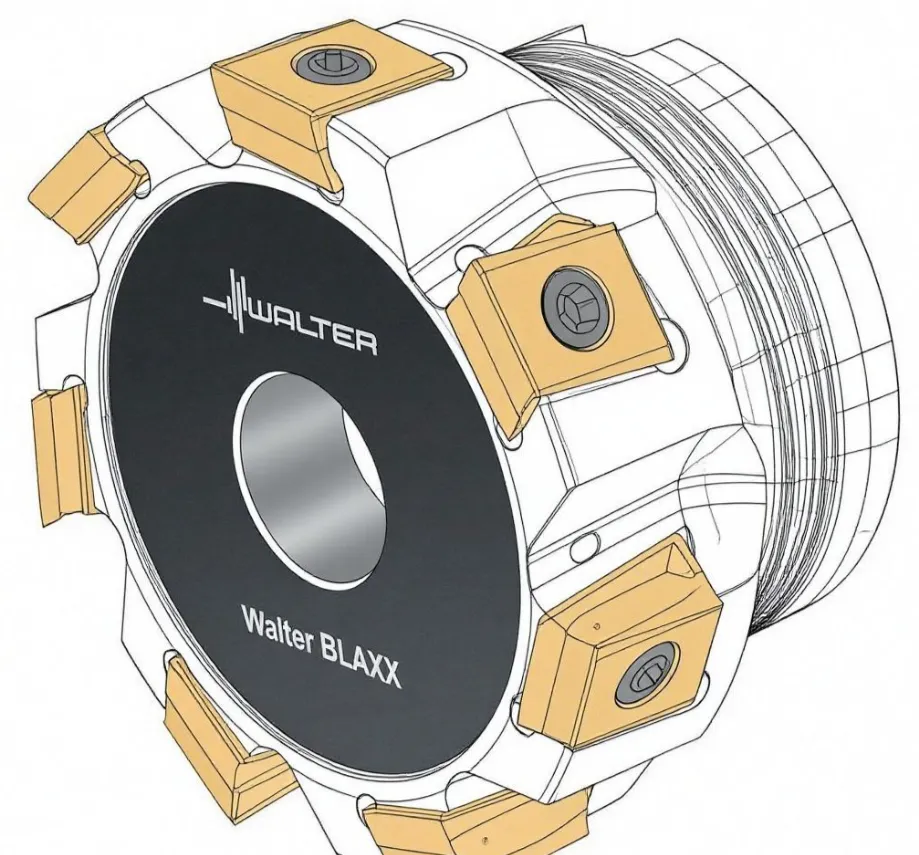

1. Face Mill

Face mills are often the first choice for manufacturing parts. They typically feature multiple indexable inserts mounted on a tool body, which is then bolted to a tool holder/shank. Face mills allow machinists to fully utilize spindle horsepower to remove material as quickly as possible.

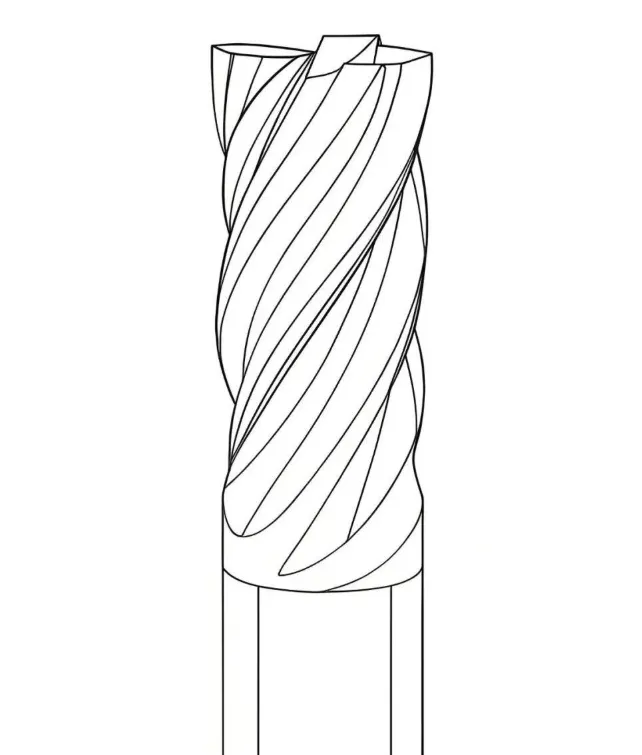

2. Square End Mill

The ubiquitous square end mill is a versatile tool and the workhorse of most machining centers. Square end mills cut with both the end and sides of the tool, enabling machinists to complete cavities and contours with a single tool. Tool geometry varies by application, but most square end mills have two or more flutes. The tool geometry itself largely depends on the material and application.

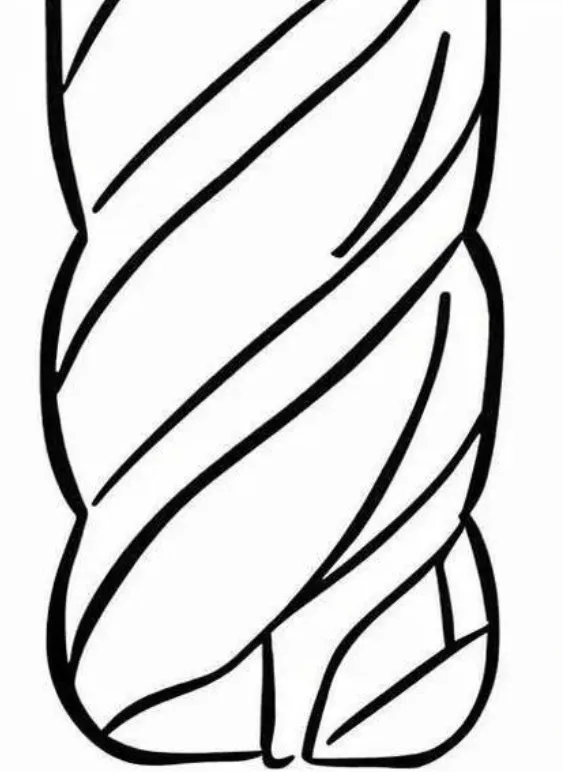

3. Corner Radius End Mill

Corner radius end mills are similar to square end mills but have rounded corners. These mills can perform face milling and side milling operations while leaving a transition radius at the intersection of the two. Some machinists prefer using corner radius end mills for roughing because the tool’s corners are less prone to heat buildup or tip damage during roughing.

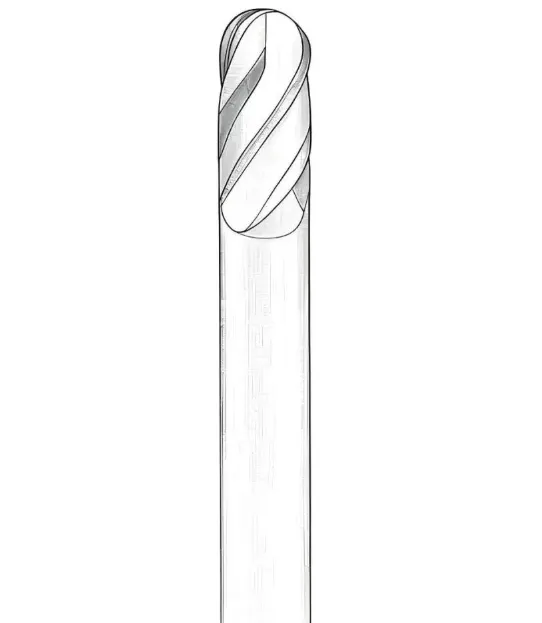

4. Ball Nose End Mill

Ball nose end mills are similar to corner radius end mills, with a corner radius equal to the tool radius. They are commonly used for finishing curved surfaces, 3D contour machining, or interpolating chamfer features (especially on 5-axis parts). The main drawback of ball nose end mills is the significant variation in effective cutting speed with radius. When creating a radius equal to the tool radius, the tool center moves at nearly zero speed. This can result in rough surface finishes or require reduced machining speeds to compensate for the decreased tangential speed near the tool centerline. Note that using a 5-axis tilted milling head allows the tool to contact the workpiece away from the tool centerline.

5. Chamfer Mill

Chamfer mills are end mills used to cut chamfer features. They are most commonly used for deburring and occasionally for countersinking. They are typically available in 30-degree, 45-degree, and 60-degree angles. If a part requires an uncommon chamfer angle, a ball nose or corner radius end mill may be needed, potentially resulting in a poorer surface finish compared to standard chamfers.

6. Tap

Taps are used to cut threads into parts. Using taps requires:
1.) A tapping chuck or tool holder
2.) A machine capable of rigid tapping.
Rigid tapping synchronizes the tool’s Z-axis movement with the spindle rotation, allowing the tap to retract without damaging the newly formed threads after thread formation. High-precision optical encoders combined with variable-frequency drive spindle motors enable modern CNC controllers to perform rigid tapping relatively easily.

There are two main types of taps used in CNC machines: cutting taps and forming taps. Cutting taps create threads by selectively removing material to form the desired thread shape. Forming taps, also known as extrusion taps, work by cold-forming a smaller hole into a threaded feature. Note that cutting taps and forming taps have different pre-drilling requirements! Forming taps can provide higher thread strength for certain materials due to cold working at the thread root and crest.

7. Slot Mill

Keyway cutters or slot mills are used to create undercut features and T-slots. Often, clever use of slot mills can eliminate the need for additional CNC machine setups, saving time and improving feature accuracy.

8. Slitting Saw

Slitting saws are essentially specialized milling cutters with a relatively large cutting radius, small width, and small arbor radius. This allows them to machine deep undercut slot features. Many machinists use slitting saws to completely separate parts, cut deep slot features, or turn certain jobs into “single operations” where all features are completed in one setup. Slitting saws are particularly adept at machining deep slot features on parts where standard end mills would require longer machining times or cause chatter and poor surface finishes.

9. Form Tool

Although less common in prototyping, form tools are custom-ground end mills that can machine certain features at very low cost. Tool manufacturers can now produce custom form tools for small-batch production. Form tools are especially useful when parts have rotational or mirror symmetry and sidewalls require interpolation or multi-axis machining. They allow machinists to create undercut geometries in simple 3-axis vertical machining center (VMC) setups, avoiding secondary operations or additional setups.

10. Drill Bit

Most machine shops stock a variety of drill bits to accommodate different drilling scenarios and materials, including both imperial and metric drill bits.

11. Renishaw Probe

The Renishaw OMP40 touch probe, while not a cutting tool, is one of the most practical tools in any prototyping workshop. The OMP40 is a touch probe that effectively converts a CNC machine into a coordinate measuring machine (CMM). Although not as accurate as a CMM, machinists can use the touch probe to locate and measure blank materials, parts, part features, and fixtures within the machine coordinate system. The probe enables strict control of the workpiece coordinate system relative to the blank material, ensuring accuracy between features machined in different setups.

---

Case Studies

Now that we understand the tools typically available in a prototyping machine shop, let’s explore how these different tools are used through some machined part case studies. The following cases were all machined on a CNC 3-axis machining center.

1. Clamp Bearing Housing Example

This component secures two sealed needle bearings in a bearing housing, paired with a flexible fixture that clamps the outer rings of each bearing to hold them in place. The exploded and assembled views are shown below.

This color-coded diagram breaks down the tools used to machine the part by feature. Note the following:

• Square end mills handle most material removal, internal and external contouring, and finishing.
• The part requires at least three operations (possibly four), standing it on its side to machine drilled and countersunk slots.
• The large cutout in the bearing clamp was machined with a slitting saw, likely the final operation for this part.

2. Retainer Bearing Housing

Similarly, this component secures a shielded bearing in a flat bearing housing but with blind holes and a retainer to secure the bearing. The exploded and assembled views are shown below.

Again, a color-coded diagram demonstrates the breakdown of tools used to machine the part by feature. Note the following:

• No other tool can cut the internal retainer groove. This blind slot feature can only be created with a slot mill.
• The outer curved surface of the bearing housing may require machining with a ball nose end mill (or corner radius end mill) to better blend the radius tangent to the sidewall.
• With the right tools, this part can be completed in just two setups, as all features can be machined from both the front and back. Despite its complexity, the part can be easily machined on a 3-axis machine with the proper tools.

Of course, from a machining perspective, if the part is not too large, turning the rotational features on a lathe would be the most economical method, requiring the design of specialized fixtures.

---

What Makes a Feature “Cheap” and How Does It Relate to Tools?

CNC part machining costs involve many factors, worthy of a separate discussion, but from a tooling perspective, there are key points design engineers should understand. The main drivers of prototyping part costs are NRE (primarily programming time), setup time, and machining time. Reducing cycle time by three minutes can lower part costs by up to 12 yuan. A “cheap” feature in CNC machining is one that can be machined with universal tools without special setups or toolpaths.

---

Considerations for CNC Machining Bronze Parts

I. Tool Selection and Cutting Parameter Optimization

Bronze parts are prone to tool adhesion and burrs, requiring targeted tool selection and parameter settings:

1. Tool Material: Prioritize diamond-coated or carbide tools (e.g., YG8). The former can have a tool life three times that of ordinary tools (data source: Sandvik Coromant technical report).
2. Cutting Speed: For pure copper, a linear speed of 60-120 m/min is recommended. For bronze, this can be adjusted based on the specific alloy. Excessive speed can lead to built-up edge.
3. Feed Rate: Roughing at 0.1-0.2 mm/rev, finishing should be reduced to 0.05-0.1 mm/rev (reference: “Metal Cutting Principles”).

II. Cooling and Lubrication Management

Bronze has high thermal conductivity, and insufficient cooling can cause thermal deformation:

1. Coolant Type: Water-soluble emulsions (e.g., 5% concentration) have 40% higher cooling efficiency than oil-based coolants (data source: MQL technical white paper).
2. Spray Method: High-pressure internal cooling (pressure ≥ 3 MPa) can effectively flush away chips and prevent surface scratching.

III. Workholding and Deformation Control

Bronze parts are relatively soft and prone to deformation, requiring special workholding solutions:

1. Clamping Force: Recommended ≤ 0.5 MPa. Excessive force can cause indentations (reference: ISO 10791-7 standard).
2. Support Design: Thin-walled parts require vacuum chucks or conformal fixtures to reduce unsupported areas.

IV. Machining Process Details

1. Chip Removal: Bronze chips pose a risk of entanglement. It is recommended to use chip-breaking groove tools or compressed air-assisted chip removal.
2. Surface Quality: For finishing, spindle speed should be ≥ 8000 RPM, with residual height controlled within Ra 0.8 μm.

By implementing these measures, common defects in bronze part machining (such as burrs and deformation) can be significantly reduced, improving machining efficiency by over 30% (case study: data from an aerospace parts manufacturer). In practice, parameters should be fine-tuned based on the bronze alloy grade, and tool wear should be regularly checked.

---

Common Bronze Machining Processes

There are several common processes for machining bronze parts.

• Casting Process: Bronze is heated to a molten state and poured into molds to cool and form. Sand casting or investment casting can be selected based on needs. Sand casting offers low cost and high flexibility, suitable for various shapes and sizes. Investment casting provides high precision and good surface quality, suitable for complex shapes.
• Forging Process: Pressure is applied to bronze billets to cause plastic deformation, improving internal structure, strength, and toughness. This is followed by machining to achieve the desired shape.
• Machining Process: Based on cast or forged blanks, methods such as turning, milling, and grinding are used to achieve precise dimensions and accuracy. Turning can process internal and external cylindrical surfaces, conical surfaces, etc. Milling can process planes, grooves, etc. Grinding can improve surface finish and accuracy.
• Stamping Process: Pressure is applied to bronze sheets using punches and dies to separate or deform them into the desired shape. This offers high production efficiency and is suitable for mass-producing simple-shaped bronze parts.
• Powder Metallurgy Process: Bronze powder is mixed with additives, pressed, and sintered to form bronze parts. This allows precise control of composition and porosity, making it suitable for mass-producing parts with special performance requirements.

---

Technical Key Points of CNC Gantry Machining for Bronze Parts

Key technical points mainly include the following aspects:

1. Understanding Material Properties: First, it is essential to fully understand the physical and chemical properties of bronze parts. Bronze alloys have varying expansion coefficients, which can affect dimensional stability under cutting temperatures. Understanding these properties helps in programming and operating with appropriate cooling and machining strategies.
2. Tool Selection and Configuration: Selecting tools suitable for bronze machining is crucial. Due to bronze’s properties, tools require appropriate sharpness and wear resistance to avoid premature wear. High-speed steel or carbide tools are generally recommended. Tool configuration should be based on the material, shape, and machining requirements of the bronze part.
3. Cutting Parameter Adjustment: When machining bronze parts, cutting speed, feed rate, and cutting depth need to be appropriately adjusted. Excessive cutting speed can cause tool overheating, while excessive cutting depth can overload the tool. These parameters should be adjusted based on material thickness, tool type, and machine performance.
4. Coolant Usage: Bronze generates heat during machining, so using coolant effectively reduces cutting temperature, improves tool life, and enhances machining quality. Common coolants include water-soluble and oil-based coolants, selected based on machine requirements and machining effects.
5. Ensuring Machining Accuracy: Bronze’s properties require attention to maintaining machining accuracy. This demands high rigidity and stability from the machine, and programming should consider the material’s characteristics. Regular machine maintenance ensures proper operation and machining quality.
6. Safety Operation Standards: Operators should be familiar with and understand the performance and characteristics of the gantry machining center, as well as the location and usage of emergency stop switches. During operation, labor protection equipment must be worn as required, and operating with gloves is strictly prohibited. Additionally, operators should not touch electronic switches with wet hands while the machine is working to avoid electric shock. During machining, tool wear should be continuously monitored. If severe wear or chipping occurs, stop the machine immediately and replace the tool.

---

Common Issues and Solutions in CNC Machining Bronze

1. Poor Arc Machining Effect and Inaccurate Dimensions

Cause:

• Resonance caused by overlapping vibration frequencies.
• Machining technology.
• Unreasonable parameter settings and excessive feed rates causing desynchronization in arc machining.
• Excessive screw gap causing looseness or overly tight screws causing lost steps.
• Worn timing belt.

Solution:

• Identify components causing resonance, change their frequency, and avoid resonance.
• Consider the machining technology of the workpiece material and program reasonably.
• For stepper motors, the machining speed (F) should not be set too high.
• Check whether the machine is installed firmly and placed stably, whether the tool holder is too tight after wear, whether the gap has increased, and whether the tool holder is loose.
• Replace the timing belt.

2. Tapered Large End Phenomenon in Workpieces

Cause:

• The machine’s level was not adjusted, resulting in uneven placement (one high, one low).
• When turning long shafts, the material is relatively hard, and the cutting tool cuts deeper, causing tool yielding.
• The tailstock center and spindle are not concentric.

Solution:

• Use a level to adjust the machine’s leveling, secure the foundation, and fix the machine to improve its toughness.
• Select reasonable processes and appropriate cutting feeds to prevent tool yielding.
• Adjust the tailstock.

3. Inconsistent Workpiece Dimensions Despite Normal Driver Phase Lights

Cause:

• Long-term high-speed operation of the machine tool holder leads to wear of screws and bearings.
• The repetitive positioning accuracy of the tool holder deviates after long-term use.
• Even if the carriage returns accurately to the machining starting point each time, the dimensions of the machined workpiece may still change. This phenomenon is usually caused by the spindle. High-speed rotation of the spindle causes severe bearing wear, leading to changes in machining dimensions.

Solution:

• Use a dial indicator at the bottom of the tool holder and run a fixed-cycle program through the system to check the repetitive positioning accuracy of the tool holder, adjust screw gaps, and replace bearings.
• Use a dial indicator to check the repetitive positioning accuracy of the tool holder, adjust the machine, or replace the tool holder.
• Use a dial indicator to check whether the machined workpiece accurately returns to the program’s starting point. If possible, overhaul the spindle and replace bearings.

4. Accurate Workpiece Dimensions but Poor Surface Finish

Cause:

• The tool tip is damaged and not sharp.
• The machine resonates and is not placed stably.
• The machine creeps.
• Poor machining technology.

Solution:

• If the tool is worn or damaged and not sharp, resharpening or selecting a better tool and realigning the tool is necessary.
• If the machine resonates or is not placed stably, adjust the leveling, secure the foundation, and stabilize the machine.
• Machine creep is caused by severe wear of the carriage guide rails or wear/looseness of the balls. The machine should be carefully maintained. After commuting, clean the wire and add lubricant in time to reduce friction.
• Choose a coolant suitable for workpiece machining. When other process requirements are met, select the highest possible spindle speed.
